Transparent LED Film Screen (90–95% Transparency)
Ultra-thin adhesive Transparent LED film screen with up to 95% transparency. No steel structure, no heavy installation.Flexible, customizable size for any project. Designed for modern glass advertising.
Still struggling with bulky LED screens blocking your storefront visibility?
Traditional LED displays require heavy structures, complex installation, and block natural light — making them unsuitable for glass windows, retail stores, and modern architecture.
Wiforfilm LED film screen solves these problems by offering a lightweight, transparent, and adhesive solution that transforms glass into a digital display — without changing your building structure.
Why Choose Transparent LED Film Screen?
Ultra-thin & Ultra-light
Thickness ≤2.5 mm and weight ≤3.5kg, easy to install and reduces structural load.
High Transparency
Up to 95% transparency, ensuring natural lighting is not affected.
Invisible Design
Micron-level LED chips with transparent protective film, completely invisible without cabinet structure.
Easy Installation
Simply attach the film and connect power & signal, no complex setup required.
Cost Saving
No steel structure or building modification needed, reducing installation and logistics costs.
Flexible & Customizable
Cuttable and customizable to fit any shape, ideal for irregular glass surfaces.
High Heat Dissipation
Efficient heat management improves performance, enhances photoelectric conversion efficiency, extends lifespan, and significantly reduces maintenance costs.

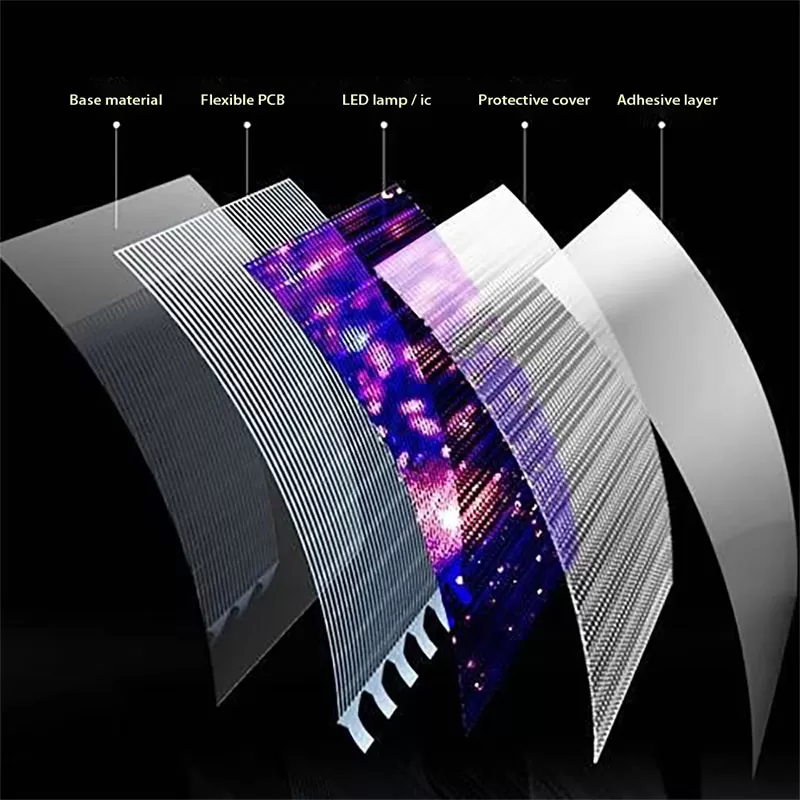

How Does Transparent LED Film Screen Work
Transparent LED film screen are an ultra-thin, flexible display technology built on flexible FPC or PET substrates, in which miniature RGB LED chips are directly encapsulated within high-transmittance resin through a bonding process, resulting in a film structure just 2–3 mm thick. The core operating principle relies on precise control of the on/off state of each individual LED pixel to achieve full-color image rendering. The hollow spacing deliberately preserved between the LED emitters, combined with a side-emission design, allows the non-illuminated areas of the screen to maintain a light transmittance of up to 85–95%. When powered on, the display delivers high-definition imagery; when powered off, it becomes nearly invisible. The film can be applied directly to glass or acrylic surfaces without the need for conventional steel support structures, achieving the visual effect of "display and transparency in perfect coexistence.More details about its working principle can be found in the full explanation of how transparent LED film screens work.
Explore Our Transparent LED Film Screen
WIFORFILM flexible LED transparent film screen are available in various pixel pitches, such as 4mm 5mm, 6mm, 8mm, 10mm, 15mm, and 20mm, providing different brightness options to suit different installation locations. The films can also be customized.Not sure which pixel pitch is right for your project? Follow our selection guide to match your viewing distance, environment to the right model.
Technical Specifications
| Model | P4 | P5 | P6.25 | P8 | P10 | P15 | P20 |
|---|---|---|---|---|---|---|---|
| Module Size (mm) | 240*1000 | 320×1000 | 400×1000 | 400×1000 | 400×1000 | 390×990 | 1000×400 |
| LED Light | REE-1313 | REE-1313 | REE-1313 / 2121 | REE-1313 / 2121 | REE-1313 / 2121 | REE-2121 | REE-2121 |
| Brightness (cd/m²) | 2000 | 2500 | 2000 / 4000 | ||||
| Pixel Composition | R1G1B1 | ||||||
| Pixel Spacing (mm) | 4×4 | 5×5 | 6.25×6.25 | 8×8 | 10×10 | 15×15 | 20×20 |
| Module Pixel | 250*60=15000 | 200×64 = 12800 | 160×64 = 10240 | 125×50 = 6250 | 100×40 = 4000 | 66×26 = 1716 | 50×20 = 1000 |
| Pixels / m² | 62500 | 40000 | 25600 | 15625 | 10000 | 4356 | 2500 |
| Transparency | 90% | 92% | 92% | 94% | 94% | 95% | |
| Viewing Angle | 160° | ||||||
| Input Voltage | AC100–240V / 50–60Hz | ||||||
| Peak Power | 600W/m² | ||||||
| Average Power | 200W/m² | ||||||
| Working Environment | −20℃ ~ 55℃ / 10–90% RH | ||||||
| Weight | 1kg | 1.3kg | |||||
| Thickness | 2.0mm | ||||||
| Drive Mode | Static | ||||||
| Control System | Nova / Colorlight | ||||||
| Lifespan | 100,000 Hours | ||||||
| Grayscale | 16bit | ||||||
| Refresh Rate | 3840Hz | ||||||
How Much Does Transparent LED Film Screen Cost?
The price typically ranges from $900 to $3000 per sqm depending on specifications.
View Detailed Pricing →Transparent LED Film Screen vs Traditional LED Display
| Item | Adhesive Transparent LED Film Screen | Structure Transparent LED screen | Conventional LED Screen |
| Weight | ≤3.5 kg/m² | ≤10 kg/m² | ≤35 kg/m² |
| Screen Thickness | ≤3 mm | ≤10 mm | around 100mm incl power box |
| Powerbox Thickness | 60 mm | 80mm | around 100mm incl power box |
| Transparency Rate | 90% ~ 95% | 60% ~ 90% | 0 |
| Installation Way | Adhesive to glass facade, a shop window(No need frame) | Fixed / Hanging | Fixed |
| External Structure | Not needed | Simple frame | Heavy frame |
| Flexible | Bendable | Customized for a certain angle | Customized for a certain angle |
| PCB | Invisible (Thin film circuit) | Traditional PCB | Traditional PCB |
| Drive Mode | Static drive | Dynamic scanning | Dynamic scanning/Static |
| Heat Dissipation | Natural cooling | Natural cooling | Fan |
| Impact on the original structure | No impact | Medium impact | Big impact |
| Maintenance way | Tear off film from glass | Take off panel | Take off module |
| Pixel pitch | P4, P5, P6, P8, P10, P15, P20 |
|
|
| Resistance to fall, crack, collision and dusk | Yes | No (Yes if with GOB) | No (Yes if with GOB) |
| Waterproof | IP65 for film surface | IP30 / IP65 for some models | IP30 / IP65 |
Transparent LED film screens and traditional LED displays differ greatly in transparency, installation, and structural requirements. While conventional LED cabinets require heavy frames and fixed mounting systems, adhesive LED film can be directly applied to glass surfaces without altering the building structure.
To understand which technology is best for your project, read our full comparison: Transparent LED Film Screen vs Traditional LED Display.
Installation Video
The transparent LED film display installation extremely convenient and does not require complicated construction, just use a squeegee to easily apply the screen to the window glass or acrylic panel,the wiring of power and signals is also very easy and can be hidden naturally.Additionally, we provide remote support from our technical team for assistance.
Application
Adhesive flexible transparent LED film screen is widely used in retail storefronts, shopping malls, offices, exhibition halls, airports, hotels, and car showrooms, It transforms ordinary glass windows into high-impact digital screens, making it ideal for both commercial promotion and creative interior design.
